Description
Beautiful Sound That Speaks To You

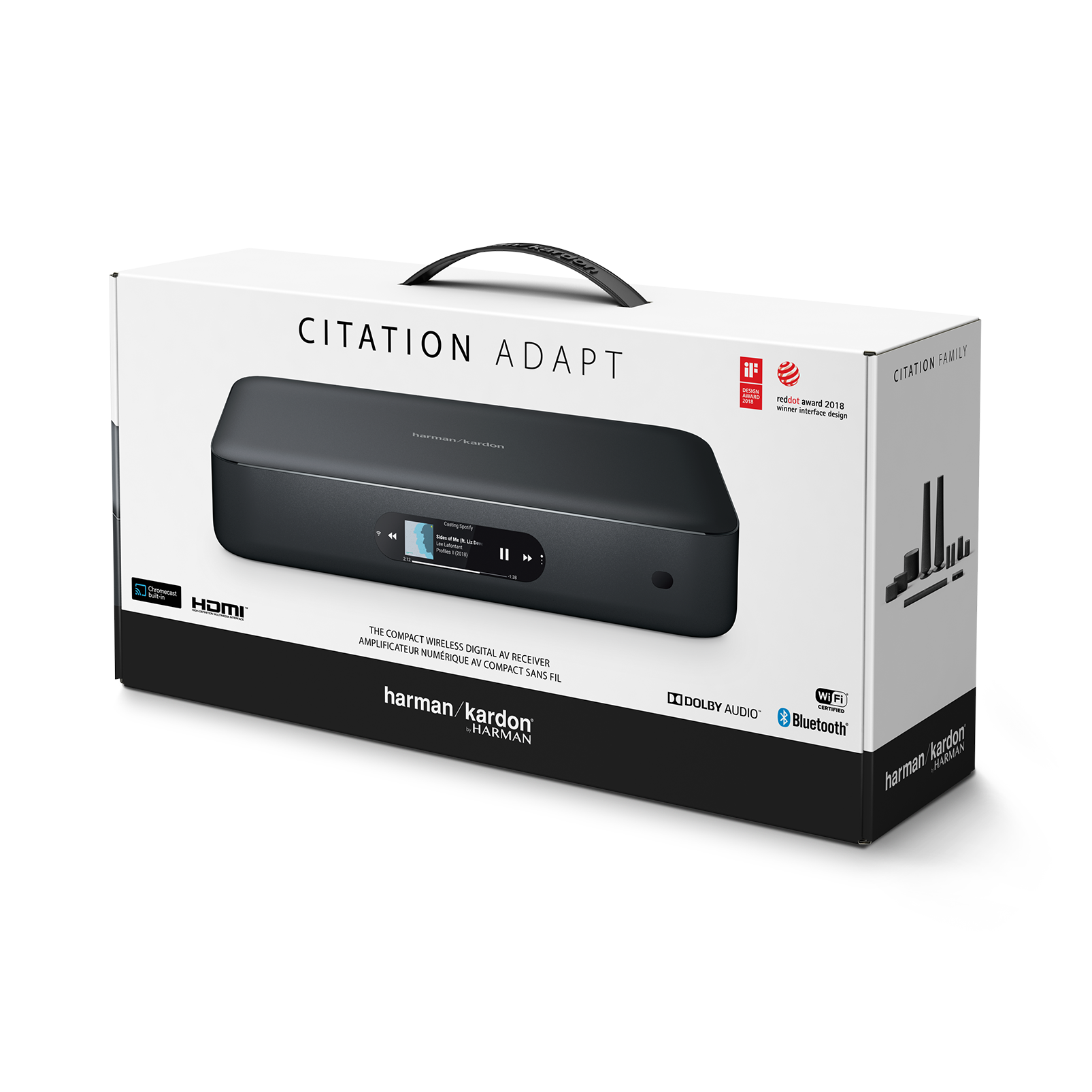

The Harman Kardon Citation Adapt is the next generation wireless digital AV receiver for movies and music. Easy to use with its full-color LCD touch screen, Citation Adapt blends innovation in home audio with attention to detail in design, allowing for sophisticated looks and fully wireless stereo sound when paired with Citation Tower or Citation Sub. Music lovers will love access to over 300 music services and high-definition streaming through Chromecast built-in, while movie lovers enjoy their all wireless home theater system with Citation Adapt as the centerpiece.
General Specifications
- Power supply
- 100-240v ~ 50/60Hz
- Wireless network
- 802.11a/b/g/n/ac (2.4GHz/5GHz)
- 2.4G Wi-Fi transmitter frequency range
- 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
- 2.4G Wi-Fi transmitter power
- <20dBm
- 2.4G Wi-Fi modulation
- DBPSK, DQPSK, CCK, QPSK,BPSK,16QAM,64QAM
- 5G WISA transmitter power
- <14dBm
- 5G WISA modulation
- OFDM, BPSK, QPSK, 16QAM
- 5G WISA transmitter frequency range
- 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
- Power consumption in sleep mode
- <2.0Watts
- Note
- CITATION ADAPT is intended to be used for streaming music. A consumer can stream Bluetooth audio to the speaker. A consumer can connect their speaker to the localWi-Fi Network and stream music with Google Chromecast. In addition, the speaker will work with Google Home. This product is designed to be instantly on and ready to play music at a moment's notice, therefore, the Bluetooth andWi-Fi connection must remain active at all times to ensure proper operation. CITATION ADAPT is in compliance with the European Union energy legislation. CITATION ADAPT will enter into sleep mode (networked standby) after 20 minutes without operation, after which it can be re-activated via Bluetooth or Wi-Fi.
Dimensions
- Dimensions (W x H x D)
- 305 x 55 x 155mm (12" x 2.2" x 6.1")
- Weight
- 1kg (0.46lb)
Control and Connection Specifications
- Bluetooth version
- 4.2
- Bluetooth transmitter power
- <10dBm
- Bluetooth transmitter modulation
- GFSK,π/4 DQPSK, 8DPSK
- Bluetooth transmitter frequency range
- 2402 – 2480MHz
Country of Origin
- China
- -
What's in The Box?
- 1 x Citation Adapt
- 1 x power cable (1.8m)
- 1 x Quick-start guide
- 1 x Warranty sheet
- 1 x Safety sheet
